To keep your lawn thriving and lush, you need to water it, but if you can’t install an irrigation system, then you can either water it by yourself or make use of portable sprinklers, which not only take time but also may not be effective enough to provide your lawn with enough water. This has encouraged many individuals to think about investing in lawn sprinklers installed right in their lawns.

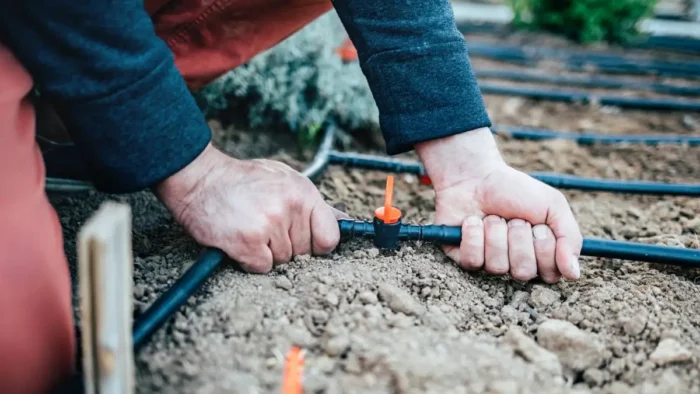

And if you are contemplating doing your irrigation system installation by yourself, this guide on How to Install a Lawn Irrigation System will walk you step by step through all those processes, from planning to designing, testing, and maintaining your irrigation system. This is applicable whether you are upgrading your old irrigation system or deciding to go with a new one.
Plan Your Irrigation System Layout
Installing without first planning can be costly. Before you go out and install anything, planning is crucial.
Measure Your Lawn
Take measurements of the entire yard. Draw its layout, including:
- All trees and plants
- Lawn Areas
- House and pathways
- Flower beds/trees
- Slopes or Uneven Spots
This will ensure that measurements are accurate, and pipe lengths and coverage by sprinklers are correct
Determine Water Pressure & Flow Rate
The water pressure you can provide will dictate how many sprinklers you can simultaneously operate.
- Use a water pressure gauge at an outdoor faucet
- Ideal pressure: 40–60 PSI
- Determine the flow rate by measuring how long it takes to fill a 5-gallon bucket
This information will enable you to size zones appropriately.
Choose Your Sprinkler Types
Different lawns require different heads
- Rotor heads –excellent for open floor plans
- Pop-up spray heads – , which are excellent for small/medium lawns
- Drip lines –ideal for flower beds and bushes
Mix and Match based on your yard layout.
Create Irrigation Zones
A zone is an area of your lawn that irrigates at the same time. The division of your lawn into zones will provide you with equal water pressure and tailored watering cycles.
How to Design Zones
Areas with same themes/notes/gotoops
- Sunlight
- Grass/shrub type
- Soil type
- Either
- Watering requirements
For instance, some parts may need less water if they are under shades.
Typical Zone Layout
- Front lawn =1-2 zones
- Backyard = 2-3 zones
- Garden beds = 1 drip zone
- Side yards = 1 zone
An average home typically will contain 4-6 irrigation zones.
Gather the Materials and Tools
For a basic lawn sprinkler installation, you’ll need:
Materials
- PVC or polyethylene piping
- PVC fittings, such as elbows, tees,
- Zone valves
- Valve box
- Backflow preventer
- Rotor/spray heads, also referred to as
- Drip irrigation tubing (optional)
- Controller/time
- Pipe glue and primer
- PTFE tape
Tools
- Shovel or trenching tool
- Pipe cutter
- Screwdriver
- Measuring tape
- Stakes and string
- Wire connectors
- Multi-meter (for wiring tests)
This speeds up the whole installation process.
Mark Sprinkler Locations
The locations of each sprinkler head should be marked with stakes or with spray paint.
- Space rotor heads 20–30 feet apart
- Space spray heads 8–15 feet apart
- Ensure coverage overlaps (this is called head-to-head coverage)
- Avoid placing heads behind obstacles like trees or walls
A balanced layout prevents dry spots and overwatering.
Dig Trenches for Your Irrigation System
Now it’s time for the physical labor.
Digging Depth
- Typical depth: 6–12 inches
- Expand into colder regions to protect your pipes from freezing
You may dig by hand or use a trenching machine if you need it faster and dirtier.
Trench Tips
- Keep trenches straight
- Avoid sharp pipe bends
- Remove rocks that could damage pipes
- Don’t place sprinklers too close to sidewalks—they may overspray
Install the Main Water Line and Valves
Connect to the Water Source
You can connect through:
- Outdoor spigot
- Main water line
- Well system (if applicable)
For permanent setups, tapping into the main line provides more consistent water supply.
Install the Backflow Preventer
This device prevents contaminated water from re-entering your home’s drinking water supply.
Mount it above ground according to local plumbing codes.
Install Zone Valves
Zone valves are used to control water supply into irrigation sectors. Install them at:
- Within a valve box
- In an accessible area
- Near the mainline but hiding in the landscape
The valves will be connected by wiring to your controller.
Lay the Pipes
Lay PVC or poly pipes in the trenches.
Steps
- Set up piping based on your zone plan
- Connect piping with fittings
- Use primer and glue for PVC
- Secure all joints tightly
- Make sprinklers accessible by leaving risers
Prevent air pockets and right angles.
Tip
The poly piping is more flexible and easier to handle if you are new at making waterfalls, while PVC piping is stiffer and more durable.
You may read 5 Types of Irrigation Systems You Must Know for Your Property.
Install Sprinkler Heads
Connect sprinkler bodies to risers.
Adjust Heads
Put them at ground level,
- Too Low → Blocked by Grass
- Too high → Risk of Breakage
Angle and path of spray prior to burial.
Check Spacing
The sprinklers should slightly overlap each other in terms of spray coverage.
Wire the Valves to the Controller
This is the electrical aspect of your water irrigation system.
Basic Wiring Steps
- Use Waterproof Connectors
- All valves’ hot wire must be connected to its terminal
- All common wires need to be connected and attached to the “Common” terminal.
- Mount either indoors with the controller or in an outdoors weather-proof box
“Programmable timers enable
- Manual run
- Automatic schedules
- Seasonal adjustments
- Rain sensor integration
Flush and Test the System
Before you bury anything, it is imperative to test your setup.
Flush the Pipes
Remove sprinkler heads and operate water system to rinse dirt and detritus.
Test Each Zone
Check:
- Water pressure
- Spray patterns
- Uniform coverage
- Leaks at pipe joints
Carry out adjustments of spray angles and arcs.
After all is functioning, lock all sprinklers and fill all trenches.
Set Your Watering Schedule
Watering smart optimizes water usage and maintains your lawn health.
Suggested Schedule
- Early morning waterings are most effective
- Watering 2-3 times per week depending on climate
- Raise frequency in summer temperatures
- Reduce in cooler months
The smart controller can adjust irrigation automatically depending on the weather.
Maintain Your Irrigation System
A well-kept system will last for years.
Regular Maintenance Tasks
- Check for broken heads
- Clean filters
- Seasonally adjust spray patterns
- Check for Leaks
- Winterize the system in cold climates
- Conduct a monthly zone test
Taking good care helps prevent water wastage and extends its life.
Final Thoughts
The process of installing lawn irrigation systems can be complex, but with proper planning, you can successfully handle it yourself. When you understand zones, sprinkler heads, and water flow, your installation becomes smoother and more effective. A well-set system ensures your lawn stays greener and more lush throughout the year. For homeowners looking for expert support, professional Irrigation System Services in Whittier, CA can make the process even easier. If you want guaranteed precision, reliability, and long-lasting results, contact Robert Complete Care today for expert assistance!
FAQs
1. Do I need a permit to install a lawn irrigation system?
Permit requirements vary by city or county. Many municipalities require permits for backflow prevention devices or for tapping into the main water line. Always check local regulations before installing.
2. What tools and materials are needed for installation?
Common essentials include PVC or polyethylene pipes, sprinkler heads, valves, connectors, trenching tools, Teflon tape, a timer/controller, backflow preventer, and basic plumbing tools.
3. How do I know how many sprinkler heads I can use?
Your available water pressure and flow rate determine how many heads you can run per zone. Conduct a flow test (using a pressure gauge and bucket test) and use the sprinkler manufacturer’s charts to design your zones properly.
4. What is a backflow preventer, and do I need one?
A backflow preventer stops contaminated water from entering your home’s potable water supply. Most building codes require one for irrigation systems.
5. How deep should I bury the irrigation pipes?
Typically 6–12 inches deep, depending on your climate, soil type, and pipe material. Deeper burial helps protect pipes from damage and freezing.
